Australian Insulation Standards: Complying with Insulation Standards for Comfortable Living

It’s easy to ignore house insulation as insignificant when building or buying a house. However, you couldn’t be more wrong. Insulation is important for health, comfort and energy usage throughout all seasons of the year. It delays the transmission of sound and heat and can help prevent heat from overheating the house during summer and improve thermal comfort during winter.

Many homes are under-insulated as they are unaware of proper insulation’s benefits. However, beyond that, certain Australian insulation standards must be met for comfortable and efficient living.

This article outlines everything you must know about the insulation standards outlined by the National Construction Code (NCC). Read through to ensure you meet the standards.

Australian Insulation Standards & Regulations

Insulation plays a vital role in comfortable living; missing it or not having enough of it might result in the opposite. Hence, the need for Australian insulation standards and regulations. However, Australia has many climate zones, states, and territories, so it gets tricky here. Australia has three climates: temperate (cool), arid (hot and dry), and tropical (hot and wet), classified into different zones. According to the NCC, Australia has eight climate zones, namely:

Climate zone 1: High humidity summer, warm winter

Climate zone 2: Warm humid summer, mild winter

Climate zone 3: Hot dry summer, warm winter

Climate zone 4: Hot dry summer, cool winter

Climate zone 5: Warm temperate

Climate zone 6: Mild temperate

Climate zone 7: Cool temperate

Climate zone 8: Alpine

Thankfully, Australian insulation standards and regulations apply to all, and you just need to find the one that concerns you. These standards are outlined by the National Construction Code (NCC).

A. National Construction Code (NCC)

The NCC is a set of building regulations that cover the design, construction, and performance of buildings in Australia. A part of this code caters to insulation standards and energy efficiency requirements for different buildings.

The insulation requirements are based on the thermal performance of materials used in building the house and are measured using R-value and U-value. The R-value shows the thermal resistance of a material, while U-value shows the thermal transmittance of a material. Usually, if a material has a high R-value, the U-value will be low.

Different zones have varying insulation requirements and standards outlined by the NCC, which you must comply with.

What does the NCC say about insulation standards?

Energy efficiency requirements

The NCC has some energy efficiency requirements geared towards managing and reducing the energy consumption of buildings in Australia. These requirements are available in the Housing Provisions of the NCC.

These requirements cover a range of standards to be met, including:

Building fabric performance

The NCC has a minimum requirement for the thermal performance of a building relating to the walls, roofs, windows, and floors. This ensures heat reduction in summer and prevents heat loss during winter to boost comfortable indoor conditions. In addition, it helps to minimise reliance on active heating and cooling systems.

Based on the R-value metrics, zones 1 to 6 require a minimum total R-value of 5.1, and zones 7 and 8 require up to a total of 6.3 roof insulation. For walls, zones 1 to 6 require a minimum total R-value of 2.8; zone 7 requires 3.0, and zone 8 3.2. There are no specific R-value requirements for windows, but there are certain limitations on the maximum glazing area allowed in walls to regulate heat loss and gain.

For floors, zones 1 to 6 require a minimum total R-value of 1.0, and zones 7 and 8 require 1.3.

Heating, Ventilation, and Air Conditioning – HVAC systems

There are established efficiency standards for HVAC systems in Australia to help encourage using energy-efficient technologies to minimise energy consumption. The NCC provides proper sizing and design guidance for the HVAC system to best suit your building size, intended use, and climate zone.

Light efficiency

The NCC has light efficiency requirements for lighting systems in different buildings. This helps boost comfortable living and minimise energy usage through energy-saving technologies like LED lighting.

Glazing and window performance

Windows can impact the overall performance of a building as it can control heat gain and loss hence why they need requirements for energy efficiency. Therefore, the NCC provides regulations for energy performance for windows and glazing. This covers U-value requirements, solar heat gain coefficient, air infiltration, and visible light transmittance.

Insulation requirements for various building types

Insulation requirements vary for different building types. They are based on the house’s total R-value, which measures a material’s thermal resistance, including roofs, walls, windows, and floors.

Commercial and residential buildings (Volume one – Class 2 to 9 buildings)

The roof requirements for zones 1 to 6 is a minimum total R-value of 2.8, 3.0 for zone 7, and 3.2 for zone 8. For walls, zones 1 to 6 need a minimum total R-value of 2.8, 3.0 for zone 7, and 3.2 for zone 8. The floor requirements for zones 1 to 6 are a minimum total R-value of 1.0 and 1.3 for zones 7 and 8.

Residential buildings (Volume two – Class 1 buildings)

The roof requirements for zones 1 to 8 are a minimum total R-value of 5.1, 2.8 for wall requirements, and 1.0 for floor requirements.

You should note that the requirements for commercial and residential buildings are general and can vary depending on certain situations and designs. Also, the size, orientation, and glazing area can affect a building’s insulation.

B. Nationwide House Energy Rating Scheme (NatHERS)

While the NCC has energy and insulation requirements for new houses, the Nationwide House Energy Rating Scheme (NatHERS) assessment is one way to meet those requirements. NatHERS help people build energy-efficient and comfortable homes that are easy to run through their energy rating system. It has measuring tools with which you can rate the energy performance of a new home’s building shell.

In addition, it rates a home’s energy efficiency using a star rating system, ranging from 0 to 10. If the house has a 0 star rating, it means that the house exterior provides little to reduce the discomfort of cold or hot weather. On the other hand, if it is a 10 star rating, it means the house is completely passive and requires no cooling or heating to ensure a comfortable interior.

However, the standard compliance level with the NCC for a home is a 6 star rating. It means that the house has a good thermal performance.

6 Star Energy Rating System

The 6 star energy rating is Australia’s most common energy assessment form for new homes. It involves modelling the proposed new building using thermal modelling software, and the final result obtained from this is the star rating. This determines the amount of energy needed to cool and heat your building to a comfortable temperature throughout the year.

If the star rating is high, your building will spend less energy, and 6 star is the minimum efficiency. All new buildings in Australia are expected to obtain the minimum star rating in line with the NCC, except NSW and NT. To assess your building’s energy efficiency, a NatHERS-accredited or non-accredited assessor will input your construction details or house plan into the NatHERS-accredited software and produce a star rating.

Ensure you invite the assessor at the beginning of your project so that they can recommend what’ll best serve you if it needs adjustment. However, hiring an accredited assessor is a better option.

Compliance with Australian standards

Complying with the Australian insulation standards is pretty simple. Beyond that, you’re the one who enjoys the benefits of doing that when you enjoy adequate heat loss or gain needed throughout the year. Here’s how you can comply with the insulation standards:

Determine your climate zone

The first thing to do is to determine the climate zone your building is located in. Australia has different climate zones categorised into zones from one to eight. Your zone will help you determine which insulation requirements are best suitable for your house.

Understand specific requirements

The NCC have specific insulation standards and requirements for different buildings. And these requirements cover floors, walls, and roofs based on the climate zone. Figure out and understand which one applies to you.

Choose the right insulation materials

Insulation materials vary from fibreglass, cellulose, rock wool, reflective foil, and polyurethane foam. Don’t just use your discretion to choose the material for your building. Instead, choose the materials that meet or exceed the Total R-value requirements specified by the NCC for your building type.

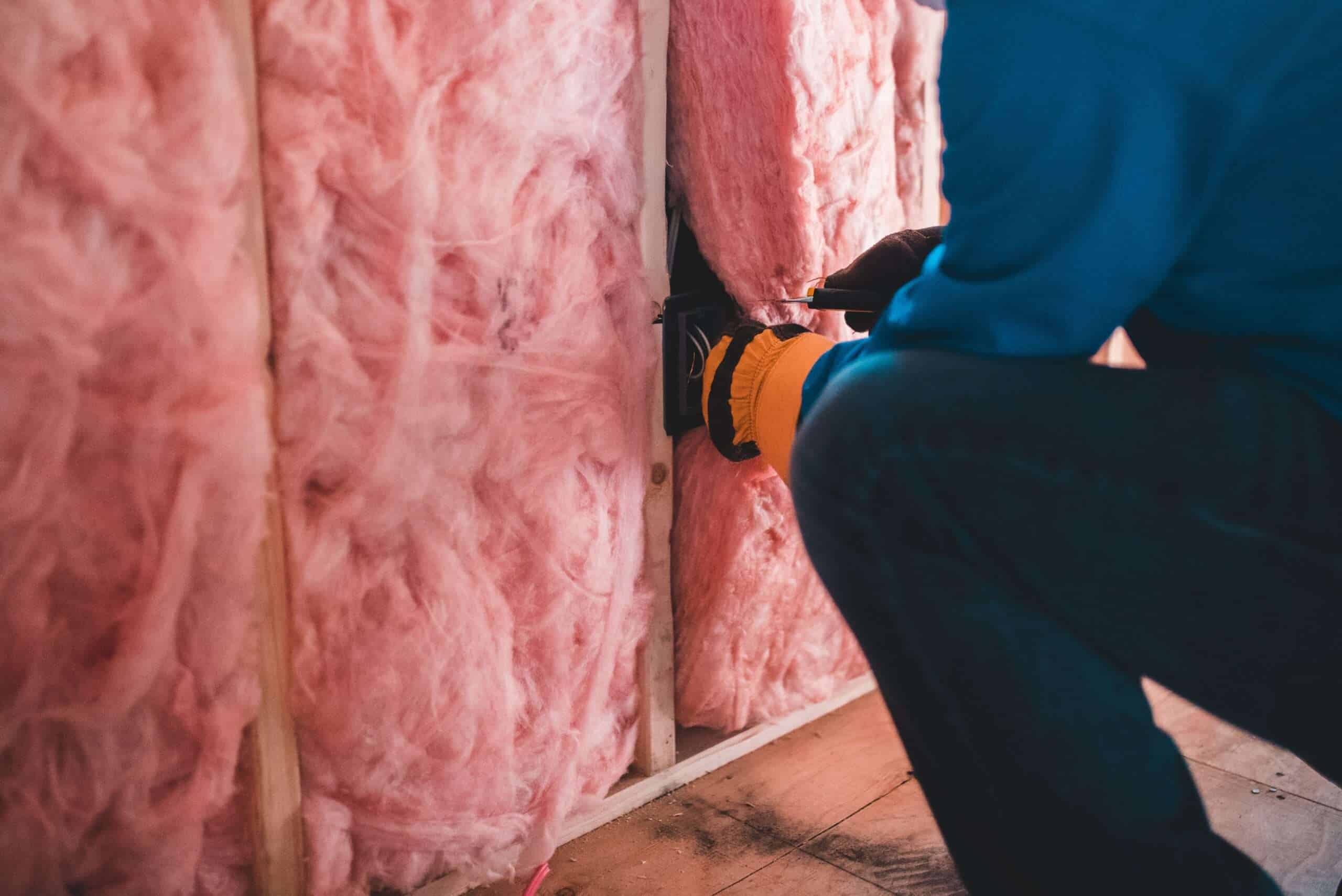

Install insulation correctly

Ensure you hire professionals to install the materials correctly to ensure the desired thermal performance and prevent air gaps. If you’re installing it yourself, follow the manufacturer’s guidelines.

Air sealing and roof ventilation

Properly seal air leaks to minimise energy loss through air infiltration and drafts. Also, follow the required roof ventilation for your climate zone and building type to manage heat and moisture accumulation in the roof.

Glazing and window performance

Focus on the glazing and window performance as they can affect the building’s energy efficiency. Use energy-efficient glazing and window materials with appropriate solar heat gain coefficient and U-Value ratings.

Consult insulation experts

Meeting insulation standards can be confusing, so consult insulation experts or sustainability consultants if you’re unsure what to do. They’re usually familiar with building regulations and best practices. This will save you the stress of worrying about how to meet up with the insulation standards.

Keep records

Ensure you keep records of the insulation process, including the materials used, the R-value, and installation. This will help during inspections and compliance verifications. All products come with warranty certificates and maintenance manuals, make sure you obtain a copy of them at the end of the project.

Insulation Performance and Ratings

While insulation is important, it can be a disaster if you can’t measure its thermal performance. It might result in little or too much insulation and not serve its purpose. This is why thermal performance is important in insulation. Hence, the need to introduce ratings that’ll help determine the energy efficiency of insulation.

Insulation is measured through different values, but the common ones specific to Australia are the R-Value (for thermal resistance) and U-Value (for thermal transmittance).

A. R-Value

The R-Value is the thermal resistance value, and it measures the ability of a material to resist heat flow. It also quantifies the insulation performance of windows, walls, floors, roofs, and other building elements. The higher the R-Value of a material is, the greater its insulation abilities and resistance to heat flow.

Minimum R-value Requirements in Australia

The minimum R-Value requirements in Australia depend on the zone or type of building. But generally, it covers requirements for roofs, walls, and floors.

Roofs

Zones 1 to 6: Minimum R-Value of 2.8

Zone 7: Minimum R-Value of 3.0

Zone 8: Minimum R-Value of 3.2

Walls

Zones 1 to 6: Minimum R-Value of 2.8

Zone 7: Minimum R-Value of 3.0

Zone 8: Minimum R-Value of 3.2

Floors

Zones 1 to 6: Minimum R-Value of 1.0

Zones 7 and 8: Minimum R-Value of 1.3

B. U-Value

The U-Value, known as thermal transmittance, measures the heat transfer rate through the walls, roofs, floors, or windows. It quantifies how much heat can pass through a building element (e.g., floor, roof, wall, or window). The lower the U-Value, the better its insulation properties and the better it can restrict heat flow.

Climate Zones and How They Impact Insulation Needs in Different Parts of Australia

Your climate zone plays a part in determining which insulation needs best suit your building. Since Australia has different zones, there’s no one-size-fits-all requirement. The climate pattern ranges from hot to humid in the north to cold and alpine in the south.

Here are insulation needs for the different parts of Australia:

Tropical climate

The tropical climate is hot and humid. Therefore, the insulation requirements focus more on heat gain prevention to keep the house cooler during hot and humid weather. You should use high R-Value materials with low U-Value, as this will help prevent heat gain.

Subtropical climate

This is zone 3, and the climate is warm and temperate. The insulation requirement for this area focuses on ensuring thermal comfort during hot summers and mild winters. You need wall, roof, floor, and ceiling insulation to achieve this.

Temperate climate

This climate zone insulation requirement focuses on providing thermal comfort throughout the year. It balances heat gain prevention during summer and heat retention during winter for energy efficiency. You need roof insulation, wall insulation, proper ventilation, and shading to achieve thermal comfort.

Semi-arid climate

This is zones 7 and 8, and they tend to get very hot during summer. Therefore, the insulation requirements aim to minimise building heat gains and manage extreme heat. You need cool roofing, shade, thermal mass material, ventilated wall insulation, and roof insulation to minimise heat gains.

Arid climate

This climate zone is usually very hot and often experiences dry and hot conditions, especially during the day and temperature drops significantly at night. The goal of insulation in this zone is to minimise heat gain in the building and reduce reliance on cooling systems. To achieve that, you should utilise cool roofing, wall insulation, roof insulation, shade, landscaping, and thermal mass materials.

Alpine climates

Alpine regions are usually very cold during winter. Therefore, their insulation goal is to manage cold temperatures and maintain a warm and comfortable indoor environment. Proper insulation in this zone helps to retain heat and minimise heat loss. This requires roof, wall, floor insulation, weatherproofing, and heating systems.

Benefits of The Right Insulation Installation

Beyond requirements and regulations, insulation has many benefits to offer. Appropriate insulation positively impacts comfort, energy efficiency, and overall building performance.

Reduced energy costs

Proper insulation reduces heat transfer through roofs, floors, and walls and maintains indoor and occupant comfort. This ultimately reduces reliance on heating and cooling systems, ensuring energy efficiency. As a result, you consume low energy in your building and reduce utility bills.

Improved comfort

Following the required insulation standards will help improve your overall comfort in your home or building. That way, you can maintain a consistent temperature during any weather condition. You can keep your space warmer during winter and cooler during summer. Ultimately, you enjoy increased comfort throughout the year.

Increased home value

Insulated houses often have a higher resale value than houses that don’t. Buyers and tenants will be more attracted to insulated houses and willing to pay more, knowing they don’t have to spend extra money to insulate to ensure their comfort.

Reduced greenhouse gas emissions

Adequate insulation results in low energy consumption. This means lower greenhouse gas emissions and a small carbon footprint. That way, you contribute to a more environmentally sustainable building and environment.

Future Trends and Innovations in Insulation

The world is advancing technologically, and insulation isn’t left behind. This means advancements and innovations are in place to meet the demand for energy-efficient and environmentally-friendly solutions. What future trends and innovations in insulation should you look out for?

A. Sustainable and eco-friendly insulation materials

Insulation has found its place in innovation and technology to make comfortable living easier while ensuring sustainability and eco-friendliness. Here are some materials that fall into that category:

Bio-based and recycled insulation

Industries are beginning to make insulation materials from renewable and recycled sources like cellulose, plastic, hemp, and other bio-based materials. These materials help to lower environmental impact and promote sustainability.

Vacuum Insulation Panels

Vacuum Insulation Panels are high-performance, ultra-thin insulation panels with a vacuum core that help manage heat transfer. They are very useful for buildings requiring high insulation performance but have limited space.

Smart Insulation Systems

Smart technologies are taking over in housing, and insulation isn’t an exception. Companies are now integrating smart technologies into insulation systems by using sensors and control systems to optimise insulation performance based on environmental conditions. It also controls insulation based on the occupant’s behaviour.

Transparent and light-transmitting insulation

Innovations have extended to using transparent insulation materials to allow natural light to pass through while ensuring thermal insulation. This helps enhance daylighting and energy efficiency in buildings.

Aerogel insulation

This insulation uses aerogels, highly porous, lightweight materials with high thermal insulating properties. They’re becoming more viable due to their low thermal conductivity and high R-Values.

B. Technological advancements in insulation products

Insulation products have recently experienced technological advancements that are efficient, eco-friendly, and contribute to user convenience. The technologies include the use of:

• Self-healing materials
• Foam insulation
• Aerogels and vacuum glazing
• Phase Change Materials (PCMs)
• Nanotechnology

Conclusion

Insulation is important to enjoy comfort in your building. Low insulation will do you no good with extremely hot and cold weather conditions. Therefore, consult the Australian Building Code Board (ABCB) for insulation requirements specific to your zone. Furthermore, ensure you talk to professionals about the best insulation condition that matches your building type, zone, and living condition needs. Not doing this is signing up for discomfort all year round and trouble during inspection and compliance verifications. Contact SQM Architects now!
