When it comes to constructing a building, whether it’s a cosy home in the heart of Melbourne or a bustling commercial hub in Victoria’s regional centres, one key element ties everything together—the concrete house slab.
This sturdy base, often unnoticed, is the fundamental platform on which our structures rest.
It’s time we shed some light on this unsung hero of construction. Concrete slabs aren’t just slabs; they’re the backbone of our buildings, providing the much-needed support and stability.
Whether you’re an aspiring homeowner or a commercial property developer, having a solid understanding of concrete slabs can make all the difference in your construction journey.
How to gain professional insights for FREE, no strings attached
Unsure about your next building project? Get expert advice, no strings attached! Take advantage of our FREE consultation at SQM Architects. We’re here to answer your queries and bring clarity to your vision. With our transparent process and reputable track record, your project is in capable hands.
Today, we’re going to delve deep into the world of concrete house slabs. We’ll navigate through the different types, their applications, and the key aspects to consider when choosing the right one. We’ll also tackle some frequently asked questions to give you a well-rounded understanding of this crucial element.
Let’s get started!
Factors to Consider When Choosing a Concrete House Slab
Choosing the right type of concrete house slab can feel like a bit of a puzzle. But don’t fret! To make the decision process a little less daunting, there are several key factors to consider. These will help you to align your choice with the specific requirements of your new build.
Let’s dive in and take a look at these crucial considerations.
Geographical Location
First off, your geographical location can play a significant role in determining which type of slab is suitable for your construction project. Things like the type of soil on your land, terrain, and even the risk of earthquakes can influence your choice.
For instance, a waffle pod slab might be the go-to for less stable soil, while a raft slab is generally suitable for sites that are level with good soil conditions.
Building Design
Next up is your building design. The size and design of your structure can have a big impact on the slab type you choose.
For example, a large commercial building with heavy loads might require a robust ribbed slab, whereas a small residential home might do just fine with a conventional slab-on-grade.
Climate
Climate is another key factor to consider. The local weather conditions and temperature fluctuations can affect the performance of your slab.
For example, a post-tensioned slab could be the best bet in areas with expansive soils that change with moisture levels, while a floating slab might be ideal in regions prone to ground freezing and thawing.
Budget
Last but certainly not least, your budget will play a significant role in your decision. As your trusted concrete contractor will tell you, different types of house slabs come with different price tags. While a precast slab might speed up the construction process, it might also come with a higher initial cost.
On the other hand, a conventional slab-on-grade might be more budget-friendly but require more time for construction.

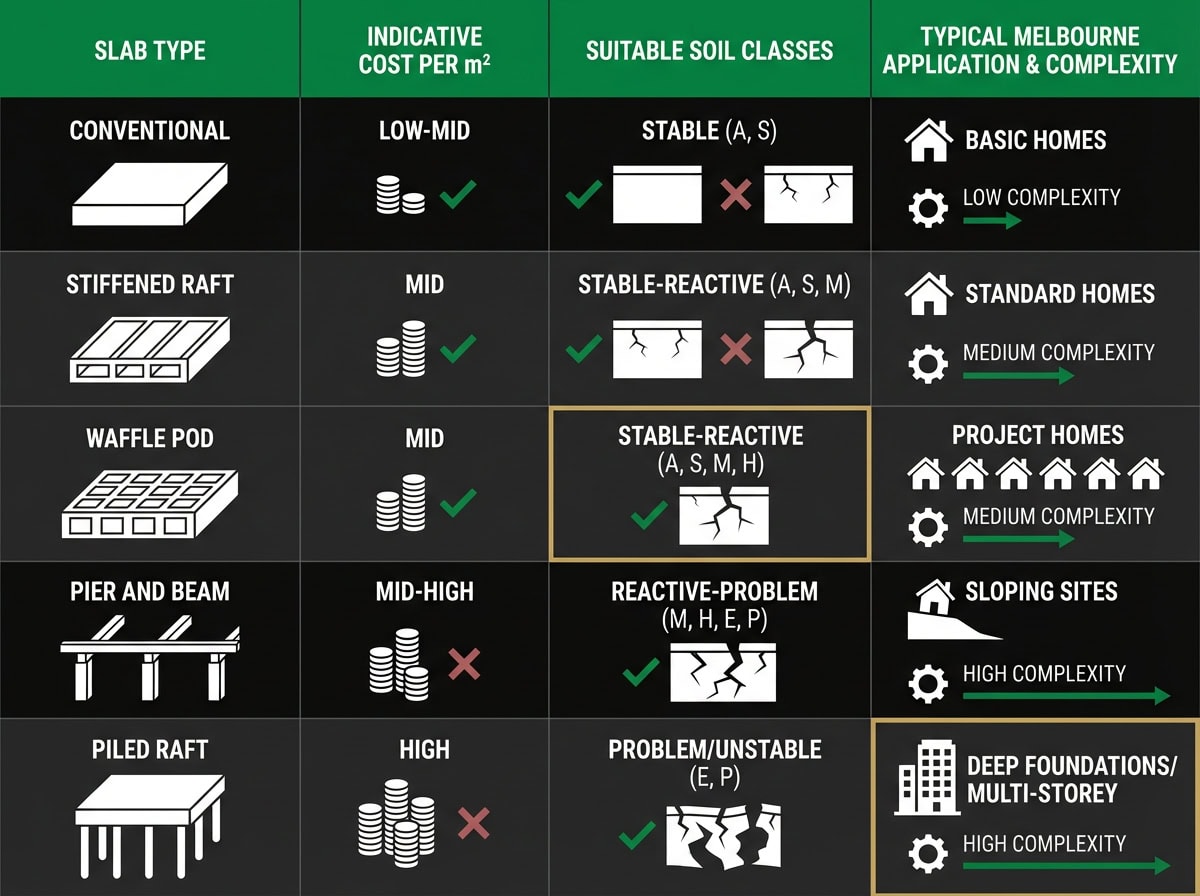

Concrete House Slab Types
As we set the stage for a deep dive into the world of concrete house slabs, it’s crucial to understand that not all slabs are created equal. Depending on various factors like the purpose of your structure, soil type, and specific design requirements, you might find one type of slab more suitable than others.
So let’s take a gander at the various types of concrete house slabs and their unique features.
Conventional Slab-on-Grade or Raft Slab
The conventional slab-on-grade, also known as the raft slab, is a solid classic in the world of concrete house slabs. It’s a one-piece slab that rests directly on the ground, making it a perfect fit for level sites with decent soil conditions. Its reliability and straightforward construction process have made it a popular choice for many homeowners and builders.
Floating Slab
Next up is the floating slab. As the name suggests, this type of slab ‘floats’ on the ground. It’s designed to move slightly with the ground beneath it, making it a good option for regions where the ground tends to freeze and thaw. The floating slab is a go-to for many due to its cost-effectiveness and less complicated construction process.
Post-Tensioned Slab
Enter the post-tensioned slab. This high-performer is specially designed to handle expansive soils that expand and contract with moisture changes. It uses steel sheets that are tensioned after the concrete has hardened, reducing the risk of cracking and providing superior strength and stability.
Waffle Pod Slab
A waffle pod slab is a type of concrete foundation system that utilizes a grid of polystyrene blocks known as “pods” to form voids within the slab, providing a firm, insulated base for the structure above. For sites with more reactive soil, concrete piers to be sunken into the soil to improve stability. It’s a type of waffle slab, sharing the characteristic grid or ‘waffle’ design.
Comparing it to other waffle slabs, including waffle raft slabs, here are some key points:
- Construction Process: Waffle pod slabs use expanded polystyrene (EPS) pods that remain in place after the concrete is poured. This differs from traditional waffle slabs, where the voids are usually formed with removable formwork. The use of pods in waffle pod slabs streamlines the construction process, as it eliminates the need to remove formwork after the concrete has set.
- Insulation Benefits: The EPS pods offer insulation benefits, which can contribute to the energy efficiency of the structure. This added insulation is not a characteristic of all types of waffle slabs, especially those where the voids are formed with removable formwork.
- Soil and Site Requirements: Like all waffle slabs, waffle pod slabs are a type of raft slab, meaning they distribute the building load evenly across the entire footprint. They are well-suited to sites with less stable or reactive soil, as this load distribution helps to prevent differential settlement. However, the particular advantages of waffle pod slabs, such as their insulation benefits and faster installation, may make them the preferred choice in certain situations.
- Environmental Impact: Waffle pod slabs can be more environmentally friendly than some other types of waffle slabs, as the EPS pods reduce the amount of concrete required. This can lead to less waste and lower emissions associated with concrete production.
The waffle pod slab, much like its tasty namesake, has a unique grid-like design. It utilises a network of concrete beams running in two directions with a slab sitting on top. This design makes it lightweight yet strong, ideal for sites with less stable soil.
Ribbed Slab (Beam and Block)
The ribbed slab, or beam and block system, is a bit of an architectural marvel. It uses a series of parallel beams with spaces (or ribs) between them, creating a sturdy and durable slab. Your architects would definitely recommend it for large spans or heavy loads, often seen in commercial structures.
Precast Concrete Slab
Precast concrete slabs are manufactured off-site and then transported and assembled at the construction site. They offer a high level of quality control, speed up the construction process, and are a solid choice for projects with tight deadlines.
Pier and Beam Slabs
These slabs, often used in areas with expansive soils or high moisture content, consist of a series of piers or columns that support a grid of beams on which the slab rests. This design allows for easy access to utilities under the house and provides some protection against soil movement.
Stiffened Raft Slabs
These are similar to conventional slab-on-grade or raft slabs but include additional stiffening beams (integral beams cast into the slab) in both directions to support the load of the building. This type of slab is often used in areas with reactive soil types to help prevent damage from ground movement.

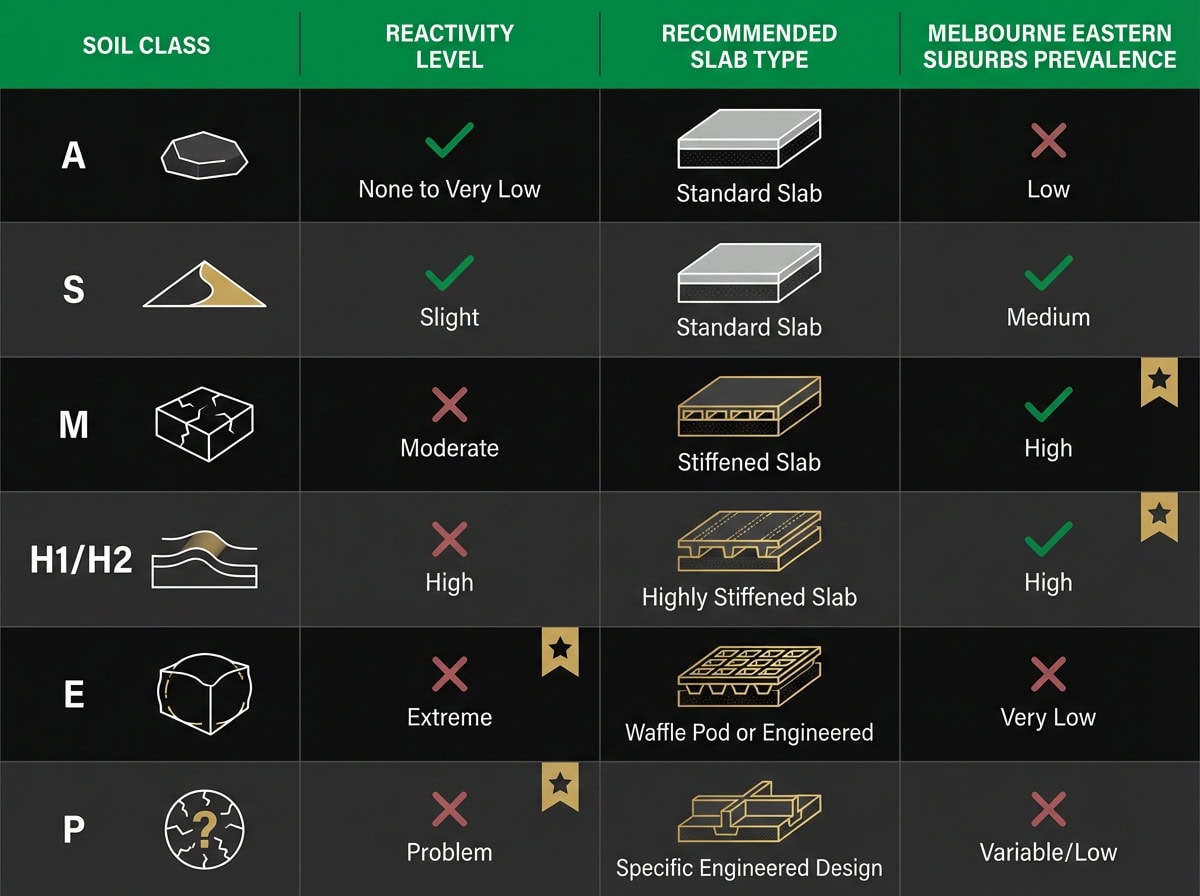

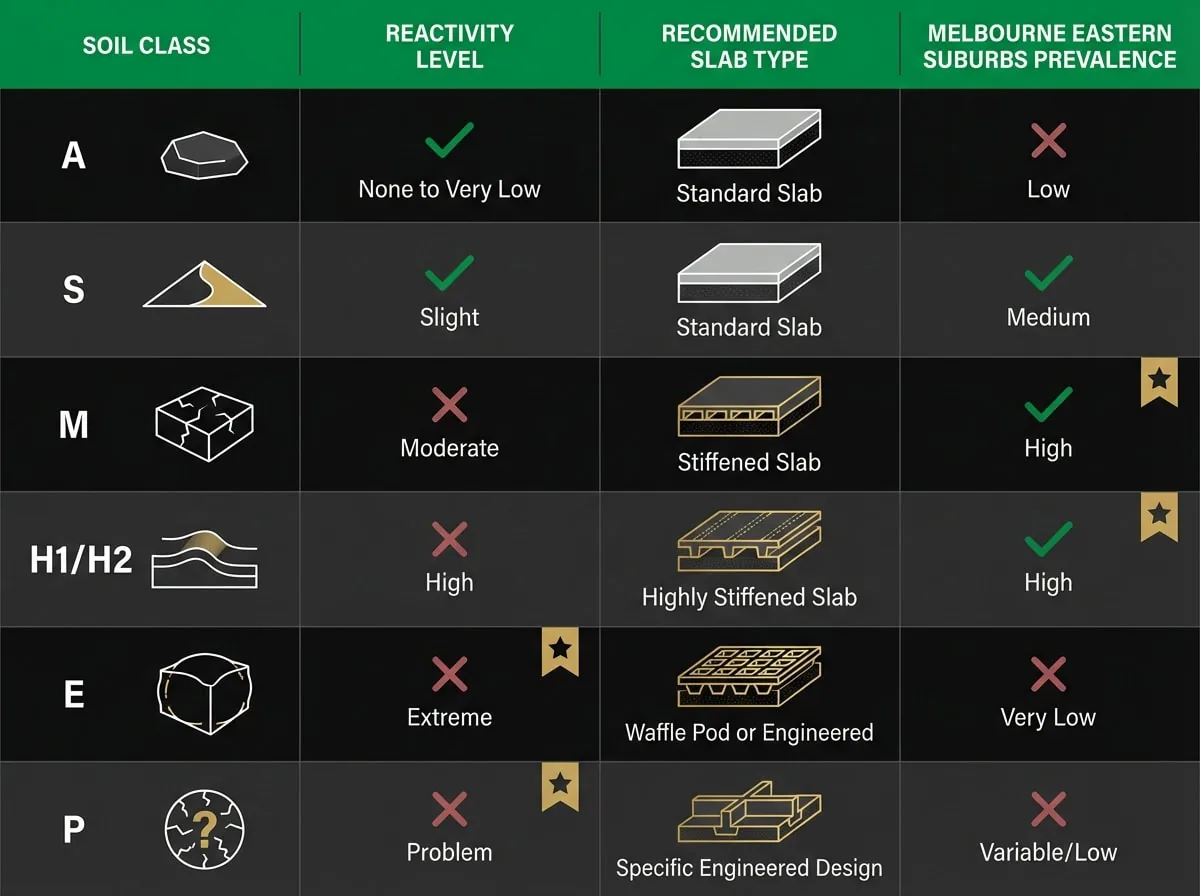

But what is soil reactivity?
Soil reactivity refers to how much a soil expands when it gets wet (absorbs moisture) and contracts when it dries out. This expansion and contraction can cause movement in the ground, which can, in turn, lead to structural damage if not appropriately managed.
Reactive soils are typically clay soils that have a high plasticity index. That means they experience a substantial volume change with moisture content fluctuation. Less reactive soils, such as sandy or rocky soils, don’t undergo much volume change with a variation in moisture content. As a result, they generally cause less ground movement and pose a lower risk to structures.
Piled Raft Slabs
In this design, concrete piles are driven deep into the ground to support the slab and the structure above it. This type of slab is often used in areas with weak or unstable soil to ensure the building’s stability.
Suspended Slabs
These slabs are most often used in multi-storey buildings, where they provide the flooring for upper levels. Suspended slabs are supported by beams, walls, or the ground and are often precast in sections before being installed.
Residential Applications of Concrete Slabs: Tips for Concrete Contractors
Concrete house slabs are not just the unsung heroes providing a solid foundation for our homes. They also have a myriad of applications within the residential sphere, from the driveway leading to your house to the patio where you enjoy your Sunday barbie.
So, let’s explore some of the common residential applications of concrete house slabs.
Foundations
Concrete slabs are the backbone of many residential structures, providing a durable and solid base upon which homes are built. These slabs are meticulously engineered and poured to distribute the weight of the structure evenly across the ground, reducing the risk of structural damage or subsidence over time. They can be engineered to accommodate various soil types and site conditions, making them a versatile choice for foundations in diverse geographical locations.
Flooring
As a flooring material, concrete is increasingly popular in modern homes. A concrete slab floor is not only durable and easy to install and maintain but also provides a thermal mass that can help regulate indoor temperatures. Your concreters can polish, stain, or texture the floor slab to provide a variety of aesthetic finishes, making it a versatile choice that can fit with any interior design.
Retaining Walls
In residential landscapes where soil erosion or movement is a concern, especially in sloping areas, retaining walls made from concrete slabs can be a practical solution. These walls can provide necessary support for the soil while also creating an attractive, structured look in your garden or yard. Their design can be tailored to suit the specific needs of the site and the aesthetic preferences of the homeowner.
Patios and Outdoor Living Spaces
Concrete slabs are generally suitable for creating patios and outdoor living spaces. They provide a level and sturdy base that can withstand outdoor conditions and heavy furniture. With a variety of surface treatments and finishes available, from stamping to staining, your concreter can create a custom look that complements your home’s exterior and landscape design.
Basement Floors
In basements, reinforced concrete slabs offer a practical flooring solution. They provide a robust surface that can handle heavy storage and high foot traffic. With the right sealing and finishing, they can also resist moisture, reducing the risk of mould or mildew, which is especially important in basement spaces.
Garages and Carports
In garages and carports, the strength and durability of concrete slabs make them ideal for supporting the weight of vehicles and withstanding the stress of frequent use. They are resistant to oil and other automotive fluid stains, and their smooth surface makes cleaning up spills a breeze.
Driveways
Driveways require a strong, durable surface that can withstand the weight and movement of vehicles, and concrete slabs are up to the task. They provide a long-lasting, low-maintenance driveway solution that can be customised in terms of colour, texture, and finish to enhance your home’s curb appeal.
Walkways and Pathways
For creating walkways and pathways around your property, concrete slabs offer a smooth and durable surface. They can be poured to any shape, allowing for creative designs that can weave around your landscape. They also require minimal maintenance, making them a practical choice for high-traffic outdoor areas.
Swimming Pool Decks
Concrete slabs are often used to create decks around swimming pools. They offer a slip-resistant surface that can handle constant exposure to water and pool chemicals. Plus, they can be finished in a variety of ways to create an attractive, resort-like feel around your pool.
Garden Beds and Landscape Edging
In garden applications, concrete slabs can be used to create raised garden beds, offering a neat and structured solution for growing your plants. They can also serve as landscape edging, providing clean lines that separate different areas of your garden and keep your landscape looking tidy and well-maintained. Their durability means they can hold up against bad weather conditions and the pressure from growing roots.
Commercial Applications of Concrete Slabs: An Essential Guide for Concreters
While concrete house slabs are widely used in residential construction, they’re not limited to our homes. They also play a pivotal role in commercial construction, providing the sturdy foundations and versatile applications that businesses need to operate efficiently and effectively.
Let’s take a closer look at how concrete house slabs are used in commercial settings.
Manufacturing Plants
In manufacturing plants, where heavy machinery and high foot traffic are the norm, concrete slabs provide a reliable and durable flooring solution. These slabs are engineered to withstand the weight and vibration of heavy equipment without cracking or shifting.
They can also be treated with various finishes to resist spills and stains, making them easy to clean and maintain, which is vital in a manufacturing environment where cleanliness and safety are paramount.
Industrial Buildings
Industrial buildings, such as warehouses and logistics centres, require robust and durable structures, and concrete slabs are a key component in their construction. They provide a strong and stable base for these buildings, supporting heavy loads and resisting wear and tear from heavy vehicles like forklifts and trucks.
Additionally, their thermal properties can help regulate indoor temperatures, contributing to a more energy-efficient building.
Retail Spaces
In retail spaces, concrete slabs are used not only for their strength and durability but also for their aesthetic appeal. Polished concrete floors, for instance, provide a modern and chic look that’s also easy to clean—a significant advantage in high-traffic areas where spills may occur.
Office Buildings
In office buildings, concrete slabs are often used in the foundations and flooring. They provide the necessary stability for multi-storey structures and can be finished in a variety of ways to suit the desired aesthetic. The inherent fire resistance of concrete also adds an additional layer of safety in these environments.
Educational Institutions
Educational institutions, such as schools and universities, also benefit from the use of concrete slabs. They provide robust and low-maintenance surfaces for areas like:
- Classrooms
- Labs
- Outdoor spaces
Their durability ensures they can withstand the high foot traffic that these institutions typically experience.
Choosing a Concrete House Slab Type: Insulation and Energy Efficiency Considerations
In the age of rising energy costs and growing environmental concerns, energy efficiency is not just a buzzword; it’s a necessity. And guess what? Your choice of concrete house slab can play a big role in the energy efficiency of your building.
So, let’s delve into the insulation and energy efficiency considerations when choosing a concrete slab.
Importance of Insulation for Concrete Slabs
Let’s start with insulation. A well-insulated slab can help keep your home or building comfortable all year round, reducing the need for artificial heating and cooling. This not only saves energy but also reduces your utility bills. In colder climates, slabs should ideally be insulated along the perimeter, while in warmer climates, insulation might be more effective beneath the slab.
Insulation Materials
Different types of insulation materials can be used with concrete slabs, each with its own advantages. Common materials include:
- Polystyrene
- Polyurethane
- Reflective insulation
The choice of insulation material can depend on various factors, such as your local climate, soil conditions, and the specific design of your building.
Energy Efficiency Ratings and Certifications
Energy efficiency ratings and certifications can also influence your choice of slab. In Australia, new homes and major renovations need to comply with the National Construction Code’s energy efficiency provisions.
Choosing a slab that helps you meet or exceed these standards can be a smart move. Plus, a high energy efficiency rating can increase your property’s value and appeal.
Cost and Budget Considerations
When it comes to construction, striking the right balance between cost and quality is essential. And when we’re talking about the foundation of your structure, the concrete house slab, it’s no different. It’s crucial to consider the cost implications of your choice, keeping in mind that the cheapest option might not always be the best one in the long run.
Let’s break down the key cost and budget considerations when choosing a concrete house slab.
Initial Costs
The initial cost of your concrete slab is the first thing that comes to mind. This includes the cost of materials and labour required for the construction. Different types of slabs can vary significantly in their initial costs.
For example, a post-tensioned slab might require more specialised labour and materials, hence a higher initial cost, while a conventional slab-on-grade might be more budget-friendly.
Long-Term Maintenance Costs
While the initial cost is important, it’s just as crucial to consider the long-term maintenance costs. A slab that’s cheaper to install but requires frequent repairs can end up costing more in the long run.
For instance, a well-installed waffle slab might require less maintenance than a floating slab in certain soil conditions, potentially saving you money over time.
Return on Investment
Finally, consider the return on investment. A durable, high-quality slab might cost more upfront, but it can add value to your property. They are also ideal if you want to reduce future repair costs.
For example, a robust ribbed slab might be a good investment for a commercial building where strength and durability are key.
Common Frequently Asked Questions
How long does it take to build a house once the slab is poured?
The timeframe for building a house after the slab is poured can vary greatly depending on:
- The size and complexity of the house
- Weather conditions
- The construction team’s efficiency
Typically, in Australia, it can take anywhere from several months to over a year. It’s important to consult with your builder for a more accurate timeline based on your specific project.
How thick is a house slab in Australia?
The thickness of a house slab can vary based on the type of slab and the specific requirements of the building. However, most residential concrete slabs in Australia are between 100mm to 200mm thick. This slab thickness is necessary to provide the strength and stability needed to support a residential structure.

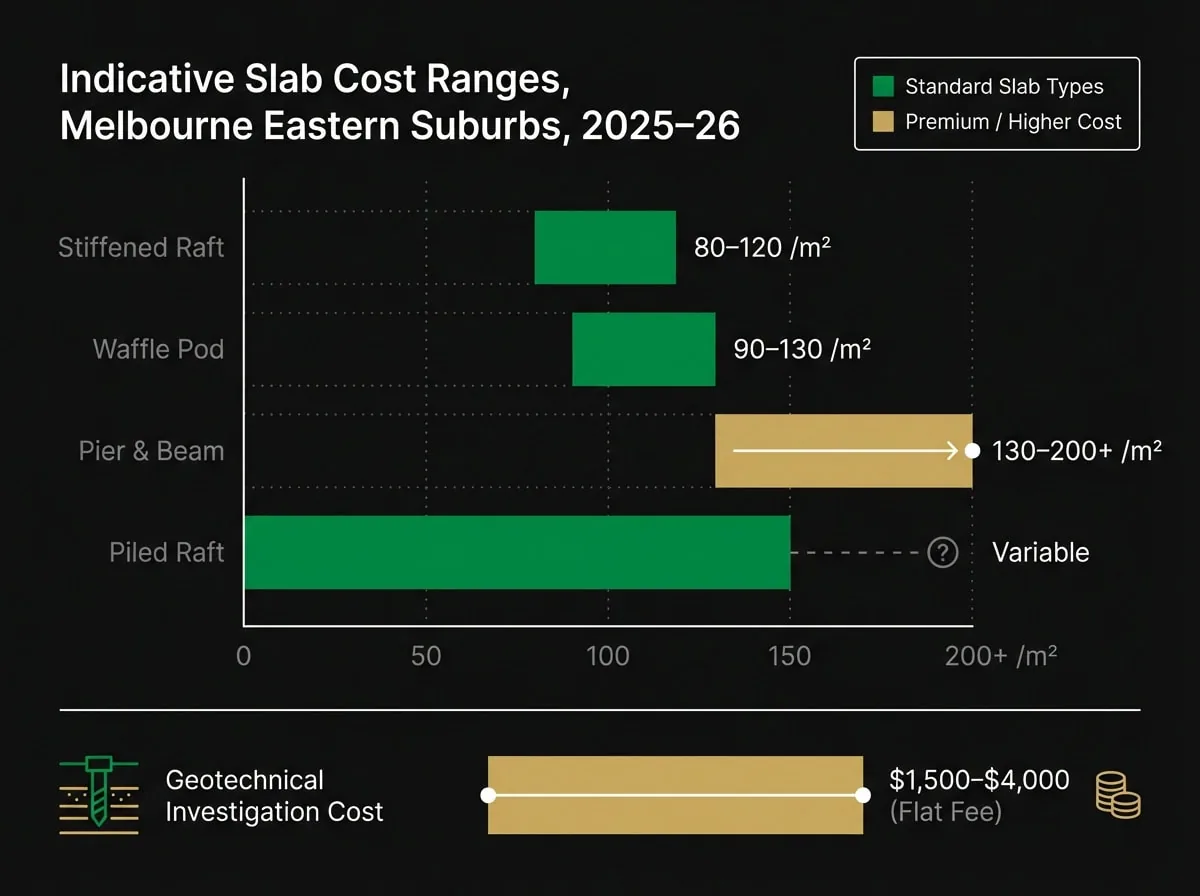

How much does a house slab cost?
The cost of a house slab can vary greatly subject to the type of slab, size of the house, and local labour costs.
On average, you might expect to pay between $60 to $85 per square metre for a standard concrete slab in Victoria, but this can vary. It’s best to get a quote from a local builder or concrete contractor for a more accurate estimate.
How long does a house slab take to dry?
The drying time for a concrete slab can depend on factors such as:
- The thickness of the slab
- The temperature
- The humidity levels
However, as a general rule of thumb, it takes about a month (28 days to be precise) for a concrete slab to dry and cure fully. This curing period is crucial for the concrete to reach its maximum strength and durability.
Can I pour my own driveway or footpath concrete?
It’s a common misconception that driveways and footpaths are superficial structures that anyone could construct themselves. In reality, driveways demand a meticulous engineering design to ensure the reinforcement and strength of the concrete used. Moreover, their design and compliance must adhere to local council guidelines, particularly with respect to their width and radius.
Footpaths, on the other hand, must meet Australian standards for structural integrity and slip resistance. Moreover, in areas with high traffic or high exposure, it’s crucial to have an engineering design for articulation joints. These joints allow for movements in the concrete, helping to prevent the formation of cracks due to shifting.
Wrapping Up
We’ve uncovered the various concrete house slab types, their applications, and the key considerations when choosing the right slab for your project. Whether you’re planning a cosy home in Victoria or launching a commercial venture, it’s clear that a sturdy and well-thought-out concrete slab is the backbone of any successful build.
