Standard Door Sizes in Australia: Dimensions and Requirements for Residential Builds

Understanding Standard Door Sizes in Australia

When planning a residential development or renovation project in Victoria’s Eastern Suburbs, understanding standard door dimensions is essential for both compliance and cost management. Door sizes directly impact construction timelines, material procurement, and ultimately your project’s feasibility. For property developers working across Whitehorse, Boroondara, and Manningham, selecting appropriate door dimensions early in the design phase can prevent costly variations and delays during construction.

Standard door sizes in Australia have evolved to accommodate modern building practices while maintaining consistency across the construction industry. The most common internal door size measures 820mm wide by 2040mm high by 35mm thick, though newer developments increasingly adopt 2340mm heights to complement contemporary ceiling heights. These standardised dimensions streamline procurement, reduce manufacturing costs, and simplify installation—critical factors when managing development budgets and construction schedules.

This comprehensive guide examines current Australian door standards, regulatory requirements under the Building Code of Australia (BCA), and practical considerations for property developers. We’ll explore how door sizing impacts planning permit applications, accessibility compliance, and project costs across Melbourne’s Eastern Suburbs councils.

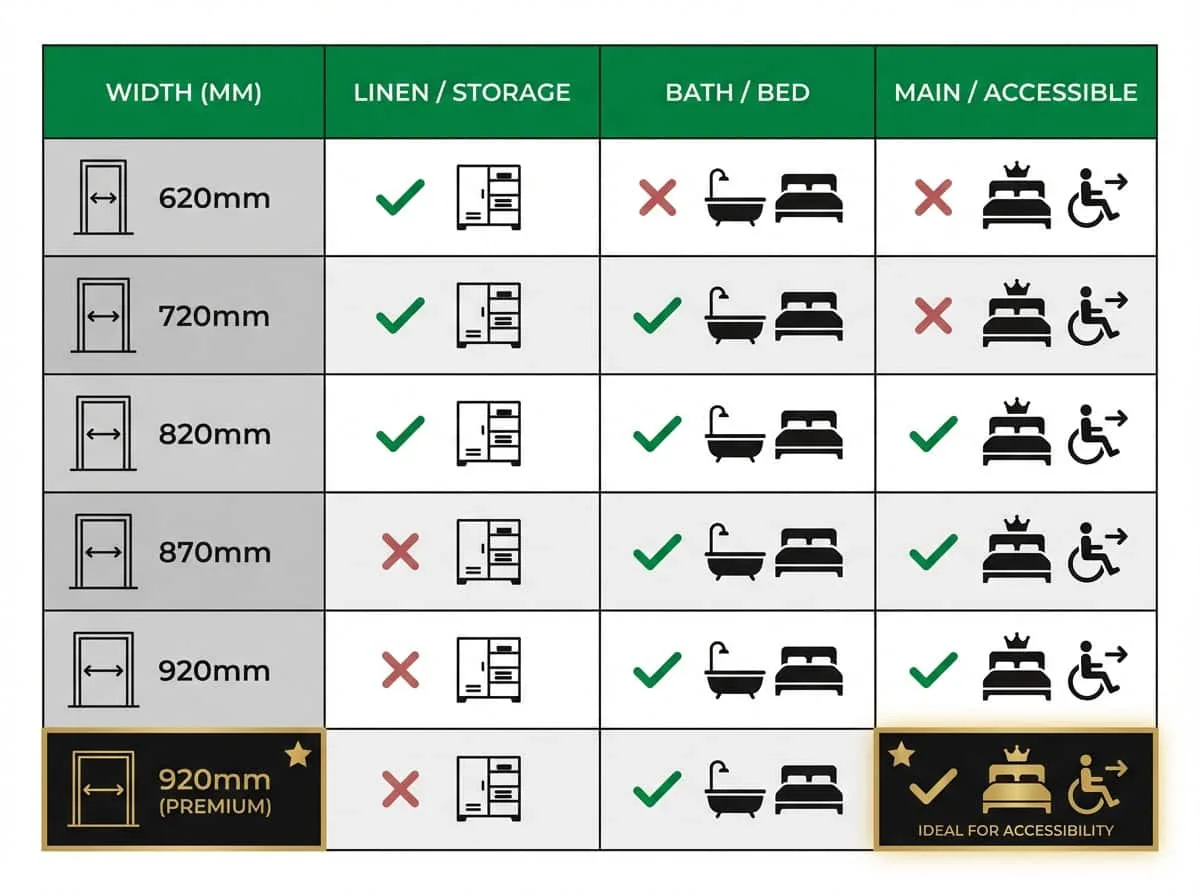

Standard Internal Door Dimensions

Internal doors in Australian residential developments follow established dimensional standards that balance functionality, cost-efficiency, and aesthetic appeal. The Building Code of Australia sets minimum door heights at 2040mm, though this represents a baseline rather than an optimal specification for contemporary developments.

Standard internal door widths range from 520mm to 920mm, with the following dimensions most commonly specified:

• 620mm width: Suitable for linen cupboards, small storage areas, and utility spaces
• 720mm width: Common for bathroom doors and secondary bedrooms
• 770mm width: Increasingly popular for standard bedrooms in medium-density developments
• 820mm width: The most common specification, representing approximately 65% of internal doors in Victorian residential projects
• 870mm width: Specified for main bedrooms and high-traffic areas
• 920mm width: Used for accessible bathrooms and feature entrances

Door thickness for internal applications typically measures 35mm, though fire-rated doors in kitchens or garage access points may require 40mm or 44mm thickness to meet BCA fire resistance requirements. When specifying doors for multi-residential developments in councils like City of Monash or Knox City Council, developers should verify specific fire rating requirements during the planning permit stage.

The trend toward 2340mm door heights reflects changing architectural preferences in Melbourne’s Eastern Suburbs. Developments in Boroondara and Whitehorse increasingly feature higher ceilings (2700mm to 3000mm), making standard 2040mm doors appear disproportionate. While 2340mm doors add approximately $80-$120 per door to material costs, they enhance perceived space and align with contemporary design expectations in premium developments.

External Door Specifications

External doors require more robust specifications than internal doors due to security, weather resistance, and thermal performance requirements. Standard external door dimensions in Australia typically measure 2040mm high by 820mm wide by 40mm thick, with the increased thickness providing improved insulation and structural integrity.

Common external door widths include:

• 820mm: Standard for single-entry doors in townhouses and apartments
• 920mm: Increasingly specified for main entrances in detached dwellings
• 1020mm: Used for accessible entries and feature doorways
• 1200mm: Specified for grand entrances in premium developments

For developments requiring planning permits across Manningham City Council or Maroondah City Council, external door specifications must demonstrate compliance with energy efficiency provisions under NCC Section J. This typically requires doors with minimum thermal resistance values, particularly for west-facing and south-facing entries.

External door heights follow the same 2040mm standard as internal doors, though premium developments may specify 2340mm heights for architectural consistency. When planning multi-unit developments, consider that external door specifications directly impact common area design, accessibility compliance, and overall project costs—factors that responsible authorities assess during planning permit evaluation.

Double Door and Wide Opening Configurations

Double door configurations provide wider access points for furniture movement, accessibility requirements, and architectural impact. Standard double door sizes in Australia consist of two individual panels, each measuring between 520mm and 920mm in width, maintaining the standard 2040mm or 2340mm height.

Common double door configurations include:

• 1200mm combined width: Two 600mm panels, suitable for compact spaces
• 1440mm combined width: Two 720mm panels, common in medium-density developments
• 1640mm combined width: Two 820mm panels, the most popular configuration
• 1840mm combined width: Two 920mm panels, specified for accessible entries and feature openings

When specifying double doors for developments in City of Whitehorse or City of Boroondara, consider that wider openings may trigger additional structural requirements during building permit assessment. Door openings exceeding 1800mm typically require engineered lintels and specific framing details, adding approximately $450-$650 per opening to construction costs.

For accessible dwelling units required under planning permits in Victoria, double door configurations must provide minimum clear opening widths of 850mm when one leaf is open. This typically necessitates specifying doors with 920mm individual panel widths to achieve compliance after accounting for door stops and hardware.

Bi-Fold and Sliding Door Dimensions

Bi-fold and sliding door systems provide space-efficient alternatives to traditional hinged doors, particularly valuable in compact developments common across Melbourne’s Eastern Suburbs. These configurations follow different dimensional standards based on panel count and track systems, similar to how window sizing varies by configuration type.

Standard bi-fold door widths vary by panel configuration:

• 2-panel systems: 1800mm total width (900mm per panel)
• 3-panel systems: 2700mm total width (900mm per panel)
• 4-panel systems: 3600mm total width (900mm per panel)
• 6-panel systems: 5400mm total width (900mm per panel)

Bi-fold doors maintain standard heights of 2040mm or 2340mm, with 35mm thickness for internal applications. When specifying bi-fold configurations for developments requiring planning permits, consider that panel widths exceeding 900mm may compromise operational smoothness and increase maintenance requirements over the building’s lifespan.

Sliding door systems follow similar dimensional standards to hinged doors but require additional wall clearance for pocket door installations. Standard sliding doors measure 620mm to 920mm in width, with heights of 2040mm, 2120mm, or 2340mm depending on the product range. For cavity sliding doors, wall thickness must accommodate the door panel plus approximately 100mm for the track system—a critical consideration during planning permit documentation for narrow-lot developments in Knox City Council or Maroondah City Council areas.

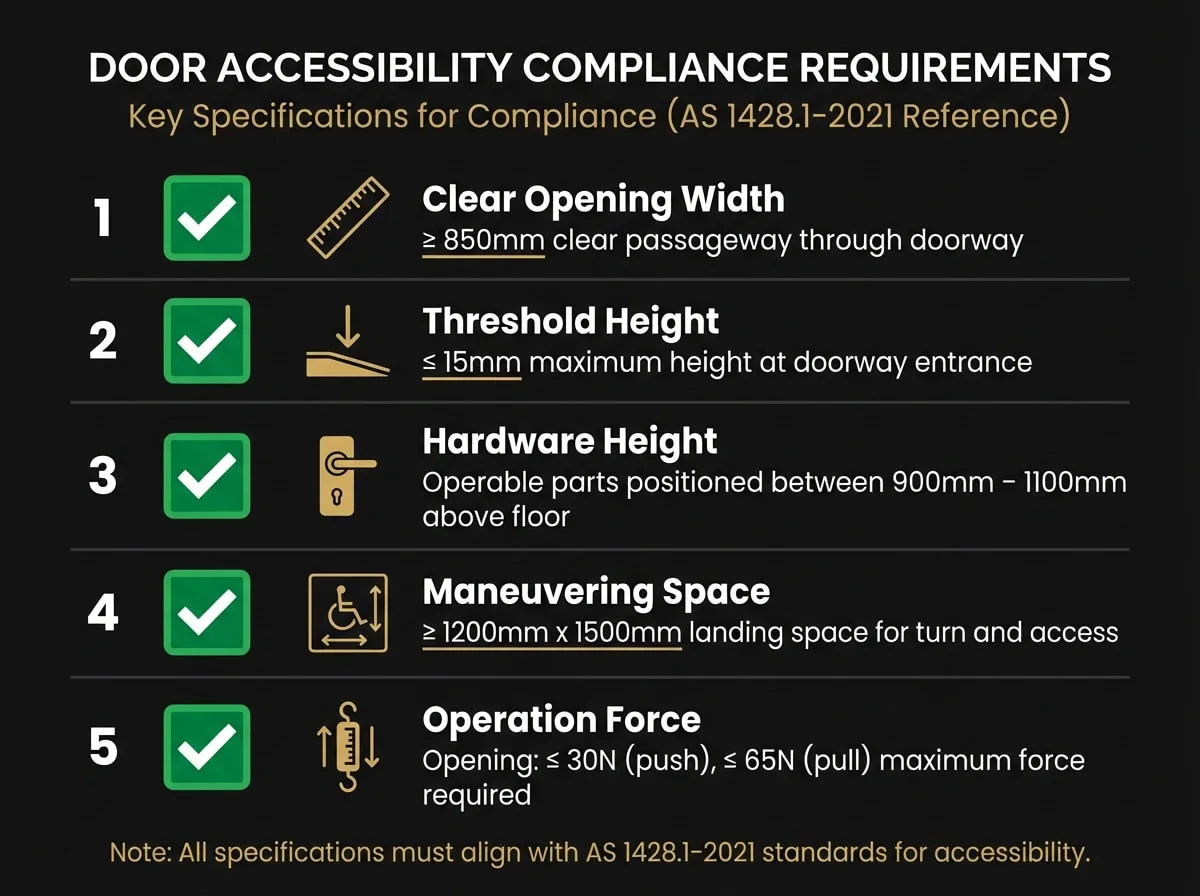

Accessibility and Compliance Requirements

Accessibility standards significantly impact door sizing decisions for developments across Victoria’s Eastern Suburbs. The BCA references Australian Standard AS 1428.1-2021 (Design for access and mobility) which establishes minimum requirements for accessible doorways in residential buildings.

Key accessibility requirements include:

• Minimum clear opening width: 850mm when the door is open at 90 degrees
• Maximum threshold height: 15mm for accessible entries, with bevelled edges
• Door hardware height: 900mm to 1100mm above finished floor level
• Maneuvering clearance: Minimum 1200mm deep by 1500mm wide circulation space adjacent to door swing
• Door operation force: Maximum 30N for internal doors, 65N for external doors

To achieve the required 850mm clear opening, developers typically specify 920mm door widths, accounting for door stops, hinges, and frame rebates that reduce the effective opening. For developments in City of Whitehorse or Manningham City Council requiring accessible dwelling units under planning permit conditions, this specification applies to all circulation paths including bedrooms, bathrooms, and living areas.

Planning permits for multi-residential developments increasingly require minimum percentages of accessible units—typically 10% to 20% depending on council policy and development scale. When preparing planning permit applications, clearly document how door specifications achieve accessibility compliance to streamline responsible authority assessment and reduce request-for-information delays.

Door Hardware and Operational Clearances

Door hardware placement and operational clearances directly impact functionality and compliance, particularly for accessible units in medium-density developments. Australian Standard AS 1428.1-2021 establishes specific requirements that developers must address during design documentation.

Standard door hardware specifications include:

• Handle height: 900mm to 1100mm above finished floor level (approximately waist height for average adults)
• Lever handle operation: Required for accessible units, with maximum 5N operating force
• Door closer force: Maximum 65N for external doors with self-closing mechanisms
• Vision panels: Required in fire doors, typically 150mm wide by 600mm high, with bottom edge 900mm above floor

Operational clearances vary by door type and swing direction. Hinged doors require clear floor space equal to the door width plus 300mm on the pull side, extending 1200mm from the door frame. For developments in Boroondara or Monash with compact floor plans, these clearances may necessitate careful furniture layout planning or alternative door configurations like sliding systems.

When specifying door hardware for planning permit applications, consider that councils increasingly scrutinise accessibility compliance during assessment. Providing detailed door schedules showing hardware heights, operational clearances, and compliance with AS 1428.1-2021 demonstrates design quality and may reduce assessment timeframes by 2-3 weeks across Eastern Suburbs councils.

Fire-Rated Door Requirements

Fire-rated doors represent a critical compliance element in multi-residential developments, with specific dimensional and performance requirements under the BCA. These doors must maintain standard dimensions while incorporating fire-resistant materials and construction methods.

Fire-rated door specifications typically include:

• Thickness: 40mm to 44mm (compared to 35mm for standard internal doors)
• Fire resistance level: -/30/30 (30 minutes integrity and insulation) for most residential applications
• Self-closing mechanism: Required for all fire doors, with maximum 65N closing force
• Intumescent seals: Installed around door perimeter to prevent smoke and flame spread
• Vision panels: Fire-rated glazing required if panels are specified

Common fire door locations in residential developments include connections between garages and habitable spaces, stairwell entries in multi-storey buildings, and boundaries between separate tenancies. For developments requiring planning permits in City of Whitehorse or Knox City Council, fire door locations must align with fire engineering strategies submitted during building permit stage and may relate to stairwell egress requirements.

Fire-rated doors cost approximately $450-$850 per door compared to $180-$350 for standard internal doors—a significant budget consideration for multi-unit developments. When preparing feasibility assessments for development sites across Melbourne’s Eastern Suburbs, allocate approximately 15-20% of total door budget to fire-rated specifications based on building configuration and BCA requirements.

Custom Door Sizing and Non-Standard Applications

While standard door sizes suit most residential applications, certain developments require custom dimensions due to architectural design, heritage overlays, or site-specific constraints. Custom doors typically cost 40-60% more than standard sizes and extend procurement timeframes by 3-5 weeks.

Common scenarios requiring custom door sizing include:

• Heritage overlays: Matching existing door dimensions in heritage properties across Boroondara or Whitehorse
• Architectural features: Oversized entries or feature doorways in premium developments
• Compact developments: Reduced door widths (below 620mm) for space-constrained layouts
• Ceiling height variations: Non-standard heights between 2040mm and 2340mm standards
• Structural constraints: Working within existing openings during renovation projects

When specifying custom doors for developments requiring planning permits, provide detailed justification in design documentation. Responsible authorities across Manningham City Council and Maroondah City Council may question non-standard dimensions, particularly if they impact accessibility compliance or appear inconsistent with surrounding development character.

For renovation projects in established areas, measure existing door openings at three points (top, middle, bottom for width; left, centre, right for height) to identify variations from square. Use the largest measurement to specify door dimensions, accounting for frame irregularities common in older buildings. This approach reduces installation complications and minimises on-site modifications that can delay project completion.

Door Frame and Jamb Considerations

Door frames and jambs add critical dimensions beyond the door leaf itself, impacting rough opening sizes and wall construction requirements. Standard door jamb widths in Australia measure 90mm, 115mm, or 140mm, corresponding to common wall thicknesses of 90mm (single stud), 115mm (stud plus plasterboard both sides), and 140mm (stud plus insulation and plasterboard).

Frame components add the following dimensions to door specifications:

• Frame width: 20mm to 40mm per side (40mm to 80mm total)
• Head clearance: 10mm to 15mm above door leaf for adjustment
• Threshold clearance: 10mm to 15mm below door leaf (may be reduced to 5mm for accessible entries)
• Architrave projection: 60mm to 90mm beyond frame on both sides

When preparing construction documentation for planning permits in City of Boroondara or City of Monash, specify rough opening dimensions that account for frame components, installation clearances, and adjustment tolerances. A standard 820mm door typically requires a rough opening of 870mm to 880mm wide by 2070mm to 2080mm high, providing adequate installation clearance without excessive gaps requiring additional trimming.

For multi-residential developments, standardising door jamb widths across the project simplifies procurement and reduces installation errors. Specify consistent wall thicknesses where possible, particularly for internal walls where structural requirements don’t dictate variations. This approach may reduce door installation timeframes by 15-20% across projects with 20+ units.

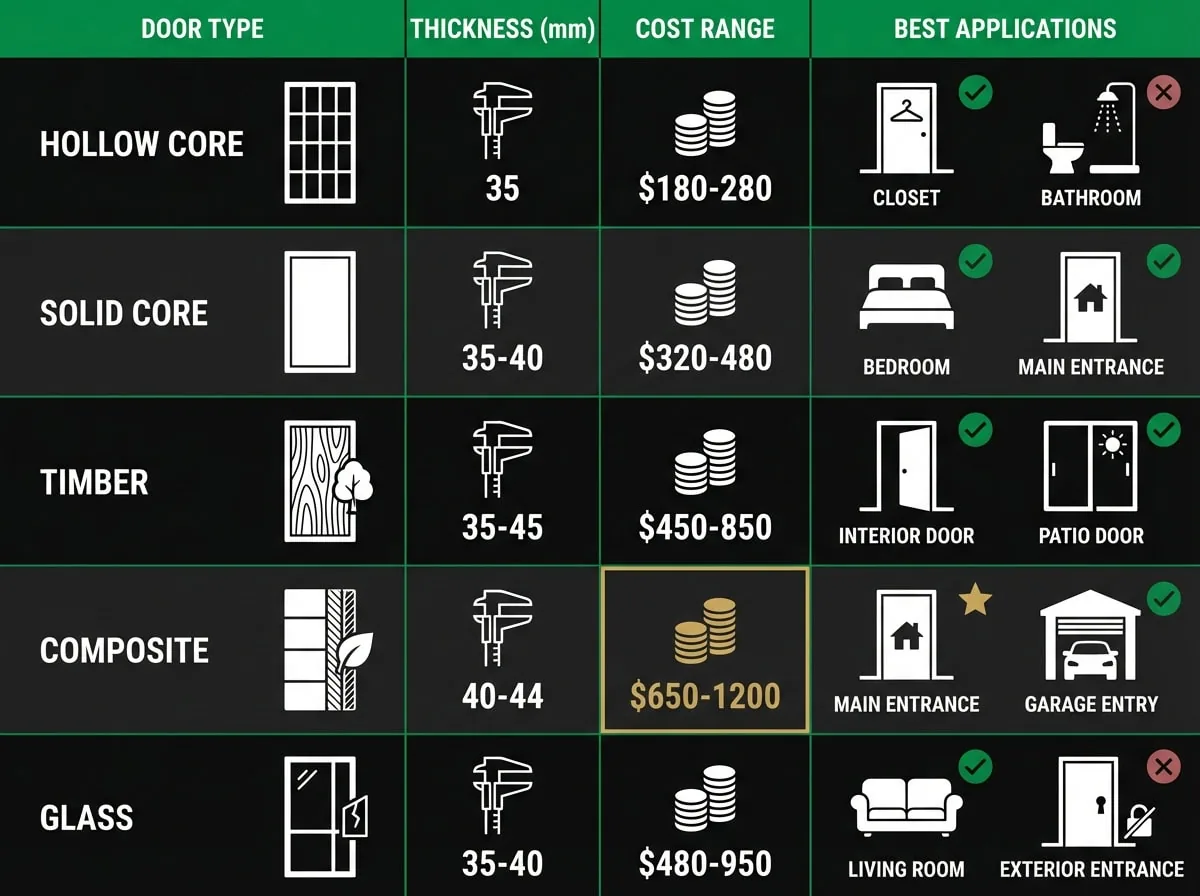

Material Selection and Door Types

Door material selection impacts dimensions, performance characteristics, and project costs. Common door types in Victorian residential developments include hollow core, solid core, timber, and composite materials, each with specific dimensional considerations.

Standard door types and characteristics include:

• Hollow core doors: 35mm thickness, lightweight construction, suitable for internal applications, cost $180-$280 per door
• Solid core doors: 35mm to 40mm thickness, improved acoustic performance, suitable for bedrooms and bathrooms, cost $320-$480 per door
• Timber doors: 35mm to 45mm thickness, premium aesthetic, require regular maintenance, cost $450-$850 per door
• Composite doors: 40mm to 44mm thickness, weather-resistant, suitable for external applications, cost $650-$1,200 per door
• Glass doors: 35mm to 40mm thickness, enhance natural light, require tempered or laminated glazing, cost $480-$950 per door

Material selection directly impacts door weight, which influences hinge specifications and frame reinforcement requirements. Solid timber doors weighing 25-35kg require three hinges compared to two hinges for hollow core doors weighing 12-18kg. For developments in Whitehorse or Knox City Council areas, specify appropriate hinge quantities and frame reinforcement in construction documentation to prevent installation issues and callbacks.

When preparing feasibility assessments for development sites across Melbourne’s Eastern Suburbs, allocate door budgets based on material specifications: approximately $280-$350 per door for standard hollow core internal doors, $450-$650 per door for solid core or timber internal doors, and $750-$1,200 per door for external doors with appropriate weather sealing and security hardware.

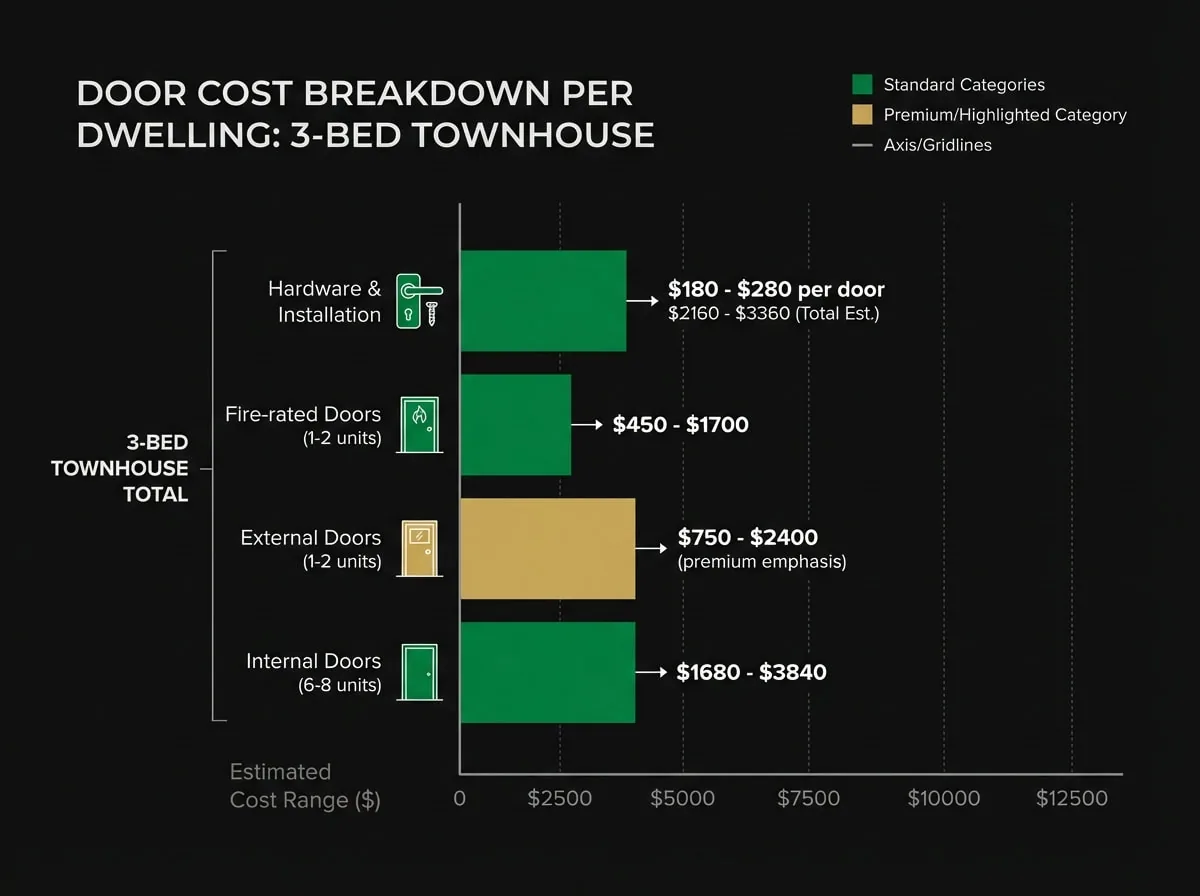

Cost Implications and Budget Planning

Door specifications significantly impact development budgets, with costs varying based on dimensions, materials, hardware, and installation complexity. For a typical 3-bedroom townhouse development in Melbourne’s Eastern Suburbs, door costs represent approximately 1.2-1.8% of total construction budget.

Typical door costs per dwelling include:

• Internal doors (6-8 doors): $1,680-$2,800 for hollow core, $2,520-$3,840 for solid core
• External doors (1-2 doors): $750-$2,400 depending on security and weather sealing requirements
• Fire-rated doors (1-2 doors): $450-$1,700 for garage access and stairwell applications
• Hardware and installation: $180-$280 per door including hinges, handles, stops, and labour

Custom door specifications increase costs by 40-60% compared to standard sizes, with additional lead times of 3-5 weeks impacting construction schedules. For developments requiring planning permits across Boroondara, Manningham, or Monash councils, specify standard door sizes wherever possible to maintain budget control and construction efficiency.

Value engineering opportunities include standardising door widths across similar room types, specifying hollow core doors for low-traffic areas like linen cupboards and laundries, and using solid core doors only where acoustic performance justifies the additional cost (bedrooms, bathrooms, studies). These strategies may reduce door costs by 15-25% without compromising functionality or compliance.

Planning Permit Considerations

Door specifications impact planning permit applications across Melbourne’s Eastern Suburbs through accessibility requirements, energy efficiency provisions, and design quality assessments. Responsible authorities evaluate door sizing as part of overall development compliance with planning scheme provisions.

Planning permit documentation should address:

• Accessibility compliance: Door schedules showing 850mm clear opening widths for accessible units
• Energy efficiency: External door specifications demonstrating compliance with NCC Section J thermal performance requirements
• Design quality: Door proportions appropriate to building scale and surrounding development character
• Safety provisions: Fire door locations aligned with building separation and egress requirements

For developments in heritage overlays across City of Boroondara or City of Whitehorse, door specifications must demonstrate consistency with heritage character. This typically requires matching existing door proportions, materials, and detailing—considerations that may necessitate custom sizing and increase project costs by $2,500-$4,500 for a typical townhouse development.

When preparing planning permit applications, include detailed door schedules showing dimensions, materials, hardware specifications, and compliance with relevant standards. This documentation demonstrates design resolution and may reduce assessment timeframes by 1-2 weeks compared to applications lacking detailed door specifications. Comprehensive door documentation contributes to successful planning outcomes by addressing compliance requirements proactively.

Installation Best Practices

Proper door installation ensures operational performance, longevity, and compliance with building standards. Installation quality directly impacts door functionality, with poor installation causing binding, gaps, and premature hardware failure.

Key installation considerations include:

• Frame squareness: Maximum 3mm variation across diagonal measurements
• Plumb tolerance: Maximum 2mm deviation from vertical over door height
• Clearance gaps: 2mm to 5mm around door perimeter for smooth operation
• Threshold clearance: 10mm to 15mm for standard applications, 5mm maximum for accessible entries
• Hinge spacing: 150mm from top, 250mm from bottom, with third hinge centred for solid doors

For multi-residential developments across Melbourne’s Eastern Suburbs, specify installation tolerances in construction documentation and conduct quality inspections before door hanging. This approach identifies frame irregularities early, preventing installation delays and reducing callback costs that typically range from $180-$350 per door for remedial work.

When coordinating door installation with other trades, ensure floor finishes are complete before final door trimming. Floor coverings like tiles, timber, or carpet affect threshold clearances, with variations of 5mm to 15mm common between different flooring types. Installing doors before floor finishes risks inadequate clearances requiring door trimming or threshold modifications—work that adds $120-$180 per door to installation costs.

Frequently Asked Questions

What is the most common door size in Australian homes?

The most common internal door size measures 820mm wide by 2040mm high by 35mm thick, representing approximately 65% of internal door applications in Victorian residential developments. External doors typically measure 820mm wide by 2040mm high by 40mm thick, with increased thickness for improved security and weather resistance.

Do I need wider doors for wheelchair access in my development?

Accessible dwelling units require doors providing minimum 850mm clear opening width when open at 90 degrees. This typically necessitates 920mm door widths to achieve compliance after accounting for door stops and frame rebates. Planning permits across Melbourne’s Eastern Suburbs councils typically require 10-20% accessible units depending on development scale.

What door height should I specify for developments with high ceilings?

For ceiling heights exceeding 2700mm, specify 2340mm door heights to maintain appropriate proportions. While 2040mm doors meet BCA minimum requirements, they appear disproportionately small in high-ceiling spaces. The additional cost of $80-$120 per door enhances perceived space and aligns with premium development expectations.

How do custom door sizes impact development costs and timelines?

Custom door sizes typically cost 40-60% more than standard dimensions and extend procurement by 3-5 weeks. For a 10-unit townhouse development, custom doors may add $8,000-$15,000 to total door costs. Specify standard sizes wherever feasible to maintain budget control and construction efficiency.

What door specifications are required for fire-rated applications?

Fire-rated doors require 40-44mm thickness, intumescent seals, self-closing mechanisms with maximum 65N force, and fire-rated vision panels if glazing is specified. Common locations include garage-to-dwelling connections and stairwell entries. Fire-rated doors cost approximately $450-$850 per door compared to $180-$350 for standard doors.

How do door specifications affect planning permit applications?

Door specifications impact planning permits through accessibility requirements, energy efficiency provisions, and design quality assessments. Documentation should include detailed door schedules showing dimensions, materials, hardware specifications, and AS 1428.1-2021 compliance. Comprehensive documentation may reduce assessment timeframes by 1-2 weeks.

What are standard door jamb widths in Australia?

Standard door jamb widths measure 90mm, 115mm, or 140mm, corresponding to common wall thicknesses. Specify consistent jamb widths across projects to simplify procurement and reduce installation errors, potentially reducing installation timeframes by 15-20% for developments with 20+ units.

Conclusion

Understanding standard door sizes in Australia provides property developers with essential knowledge for planning compliant, cost-effective residential developments across Melbourne’s Eastern Suburbs. Standard dimensions of 820mm wide by 2040mm high for internal doors and 820mm wide by 2040mm high by 40mm thick for external doors represent industry norms that balance functionality, accessibility, and budget considerations.

For developments requiring planning permits across City of Whitehorse, City of Boroondara, Manningham City Council, City of Monash, Knox City Council, and Maroondah City Council, door specifications must demonstrate compliance with BCA requirements, AS 1428.1-2021 accessibility standards, and council-specific design guidelines. Specifying appropriate door dimensions early in the design phase streamlines planning permit assessment, reduces construction costs, and ensures developments meet contemporary market expectations. With extensive experience across Melbourne’s Eastern Suburbs, SQM Architects understands how door specifications impact development feasibility and project success.

For developers seeking guidance on door specifications for their next project, call SQM Architects on (03) 9005 6588 for a complimentary site assessment.

---

This article provides general information about Victorian planning for property developers. It does not constitute professional advice. For specific guidance on your project, contact SQM Architects (ARBV Reg. No. 51498) for a complimentary site assessment.
